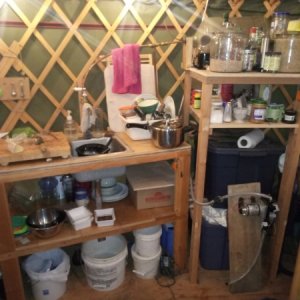

Slightly fancier water/kitchen sink setup (with some storage)

Slightly fancier water/kitchen sink setup (with some storage)

  • Media owner hierony
  • Date added Oct 18, 2018
  • Reaction score 0
  • Comments 0

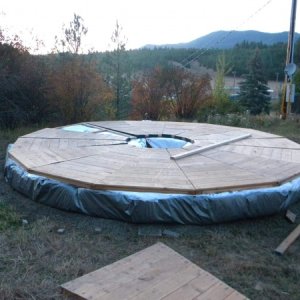

Yurt platform, silver edition. Leveled ground, tamped gravel, tarp, strawbales, tarp folded on top of bales & taped with tyvek to seal, platform wedge

Yurt platform, silver edition. Leveled ground, tamped gravel, tarp, strawbales, tarp folded on top of bales & taped with tyvek to seal, platform wedge

  • Media owner hierony
  • Date added Jan 31, 2018
  • Reaction score 0
  • Comments 0
Snow yurt.

Snow yurt.

  • Media owner hierony
  • Date added Jan 1, 2017
  • Reaction score 0
  • Comments 0

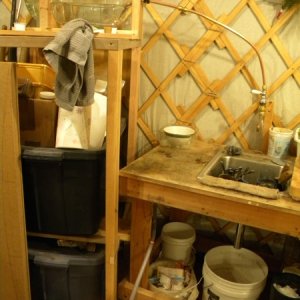

Indoor water system!

Indoor water system!

  • Media owner hierony
  • Date added Jan 1, 2017
  • Reaction score 0
  • Comments 0

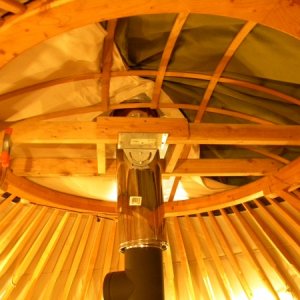

Chimney exit II/profile view

Chimney exit II/profile view

  • Media owner hierony
  • Date added Dec 15, 2016
  • Reaction score 0
  • Comments 0

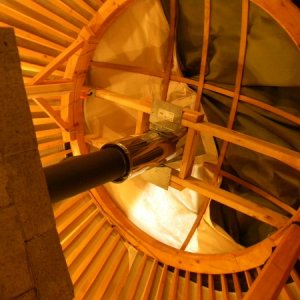

Chimney exit.

Chimney exit.

  • Media owner hierony
  • Date added Dec 15, 2016
  • Reaction score 0
  • Comments 0
Doors & ports in.

Doors & ports in.

  • Media owner hierony
  • Date added Nov 28, 2016
  • Reaction score 0
  • Comments 0

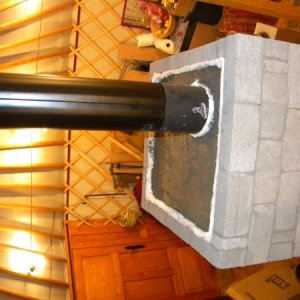

Perlcrete cap on.

Perlcrete cap on.

  • Media owner hierony
  • Date added Nov 28, 2016
  • Reaction score 0
  • Comments 0

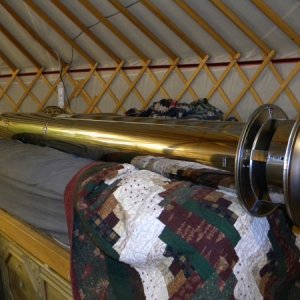

Chimney.

Chimney.

  • Media owner hierony
  • Date added Nov 28, 2016
  • Reaction score 0
  • Comments 0

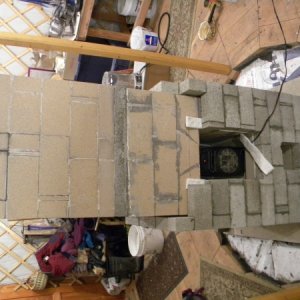

Concrete brick facing partially complete. ~1/4" air gap maintained between the core & facing using cardboard, which is removed after the mortar sets.

Concrete brick facing partially complete. ~1/4" air gap maintained between the core & facing using cardboard, which is removed after the mortar sets.

  • Media owner hierony
  • Date added Nov 27, 2016
  • Reaction score 0
  • Comments 0

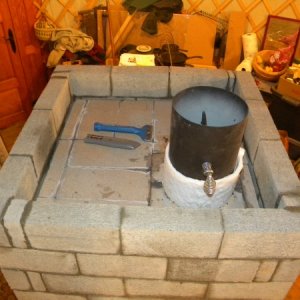

The very top. To be capped/filled with perlcrete & mortar.

The very top. To be capped/filled with perlcrete & mortar.

  • Media owner hierony
  • Date added Nov 27, 2016
  • Reaction score 0
  • Comments 0

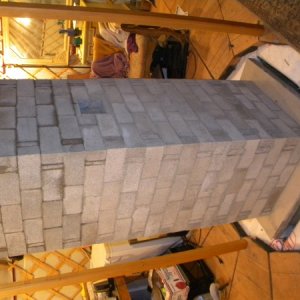

The boring backside.

The boring backside.

  • Media owner hierony
  • Date added Nov 27, 2016
  • Reaction score 0
  • Comments 0

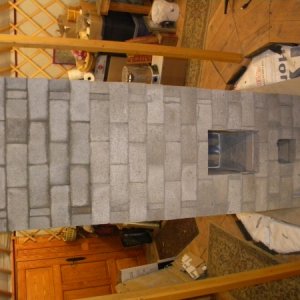

The facing is finally complete! All 225 bricks.

The facing is finally complete! All 225 bricks.

  • Media owner hierony
  • Date added Nov 27, 2016
  • Reaction score 0
  • Comments 0

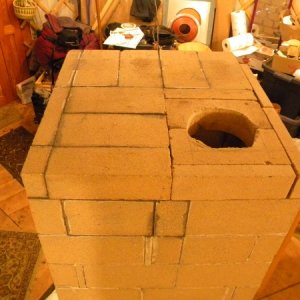

The top, with the chimney/stovepipe hole which still needs some work (right-most bricks not mortared in).

The top, with the chimney/stovepipe hole which still needs some work (right-most bricks not mortared in).

  • Media owner hierony
  • Date added Nov 20, 2016
  • Reaction score 0
  • Comments 0

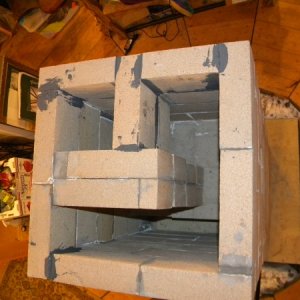

Upper half of upper bell. The firebrick spanning the U-shape blocks heat from a direct path to the chimney, which will exit through the little 6.5x6.5

Upper half of upper bell. The firebrick spanning the U-shape blocks heat from a direct path to the chimney, which will exit through the little 6.5x6.5

  • Media owner hierony
  • Date added Nov 20, 2016
  • Reaction score 0
  • Comments 0

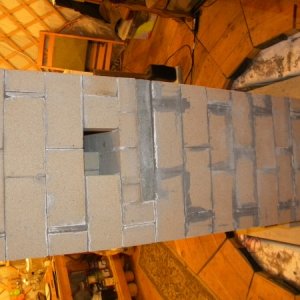

Left side with cleanout port.

Left side with cleanout port.

  • Media owner hierony
  • Date added Nov 20, 2016
  • Reaction score 0
  • Comments 0

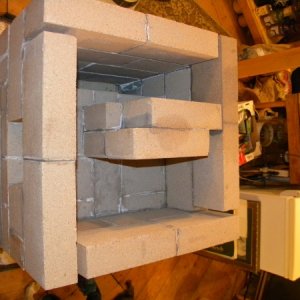

Lower half of upper bell for heat exchange. Note the cleanout access opening on the left side.

Lower half of upper bell for heat exchange. Note the cleanout access opening on the left side.

  • Media owner hierony
  • Date added Nov 20, 2016
  • Reaction score 0
  • Comments 0

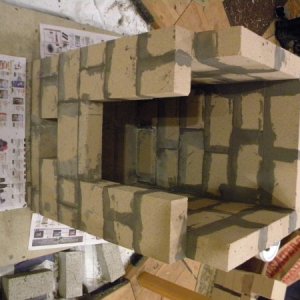

Outer core up. Now to build the firebox inside it.

Outer core up. Now to build the firebox inside it.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0

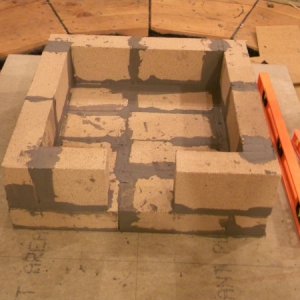

2nd course.

2nd course.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0

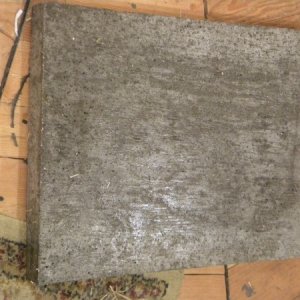

Cast refractory tile for spanning/capping the firebox.

Cast refractory tile for spanning/capping the firebox.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0

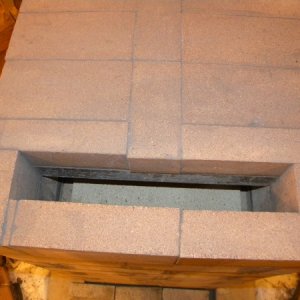

Air gap. I finally got a grout sponge for cleaning up the smeared refractory mortar. Next level is the heat exchange channel/bell.

Air gap. I finally got a grout sponge for cleaning up the smeared refractory mortar. Next level is the heat exchange channel/bell.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0

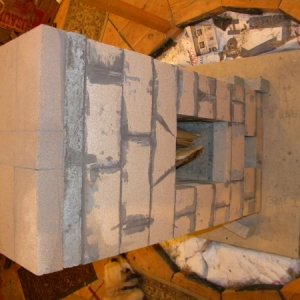

Front of heater. Gray 2" thick piece is tile for spanning the core.

Front of heater. Gray 2" thick piece is tile for spanning the core.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0

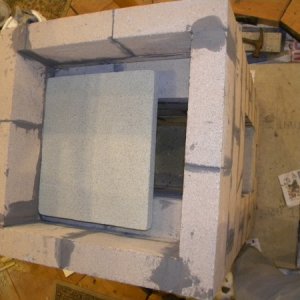

Firebox with vermiculite baffle on top.

Firebox with vermiculite baffle on top.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0

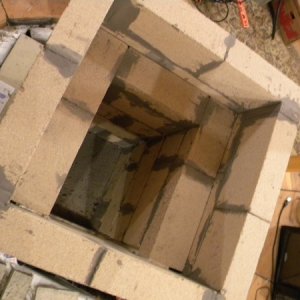

Firebox finished. Note interior bricks blocking the air flow passage between the inner & outer core.

Firebox finished. Note interior bricks blocking the air flow passage between the inner & outer core.

  • Media owner hierony
  • Date added Nov 16, 2016
  • Reaction score 0
  • Comments 0
