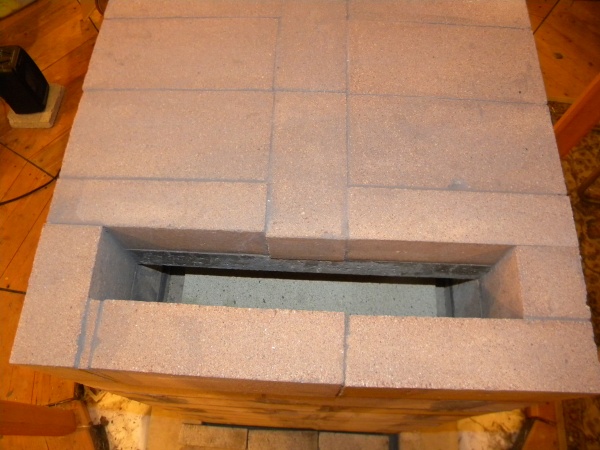

Air gap. I finally got a grout sponge for cleaning up the smeared refractory mortar. Next level is the heat exchange channel/bell.
Next
Prev
Outer core up. Now to build the firebox inside it.
2nd course.
Cast refractory tile for spanning/capping the firebox.
Air gap. I finally got a grout sponge for cleaning up the smeared refractory mortar. Next level is the heat exchange channel/bell.
Front of heater. Gray 2" thick piece is tile for spanning the core.
Firebox with vermiculite baffle on top.
Firebox finished. Note interior bricks blocking the air flow passage between the inner & outer core.
